5  Datavisualization

Session 5

Author

François Briatte
(small modifs by Kim Antunez & ChatGPT)

session date

March 5, 2024

By the end of this chapter, you have learned key aspects of data visualization and the importance of appropriate visualization methods.

In a nutshell

  • Showcasing examples of data visualization, including a famous circular histogram, a map, and a lineplot.
  • Introduction to resources for reproducible code, such as the R Graph Gallery.
  • Highlighting the layer-based structure of plots and the significance of color choices.
  • Utilizing various plotting functions and techniques in R, such as ggplot2 for creating effective visualizations.
  • Demonstrating the impact of different projections and coordinate reference systems (CRS) in geographical mapping.

5.1 Why?

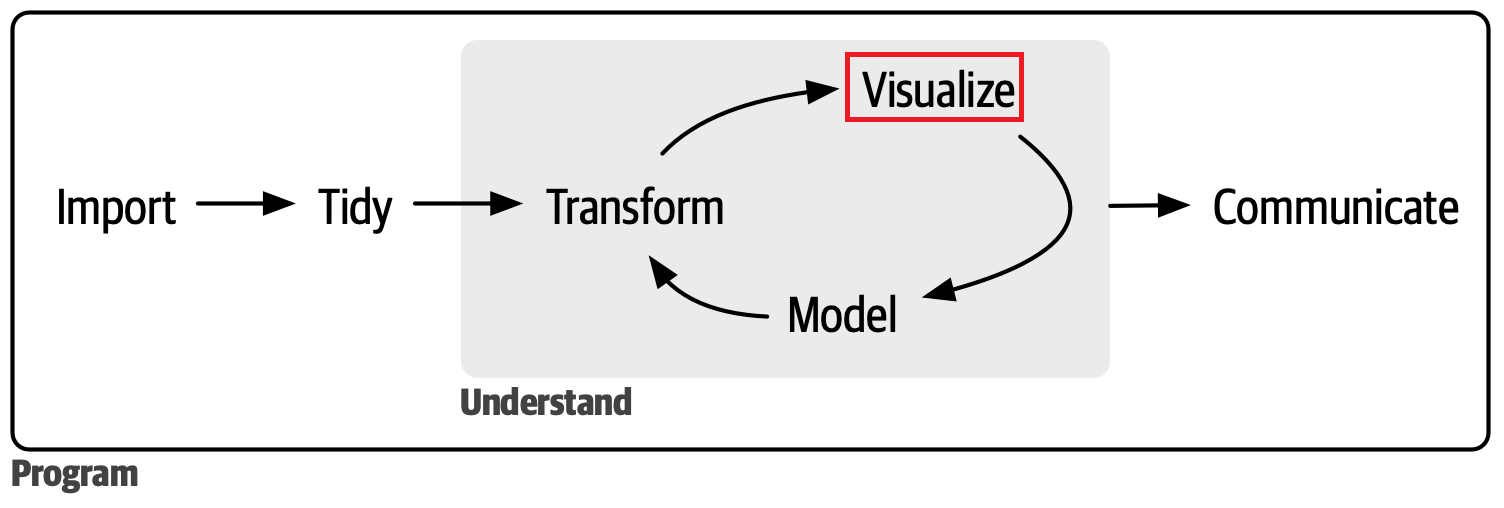

5.1.1 One of the steps in DataScience

Source: https://r4ds.hadley.nz

Source: https://r4ds.hadley.nz

Visualization is one of the key steps in Data Science. Use visualizations to uncover unexpected patterns, prompt new questions, and gain insights. However, visualizations may be limited by human interpretation.

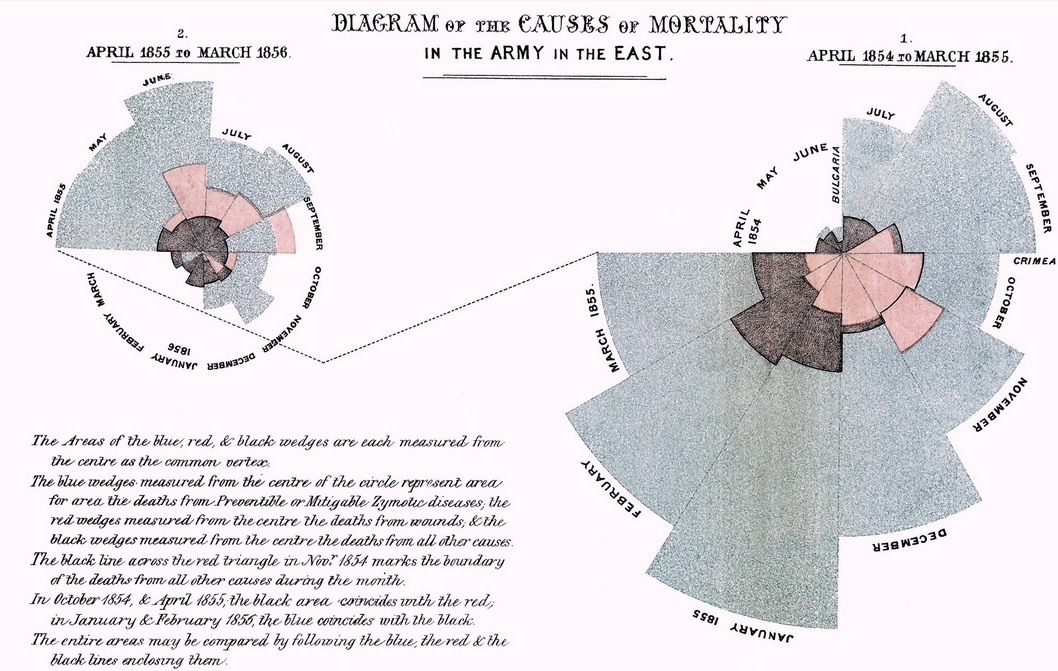

5.1.2 Example 1 : Circular histogram to illustrate the seasonal sources of soldiers’ fatalities during the Crimean War

Her diagram depicted twelve spokes, one for each month of the year. Each spoke was split into color-coded wedges which represented different causes of death. The blue wedges—clearly the largest—represented deaths from infectious but preventable diseases. The much smaller red wedges represented death from wounds, while the tiny black wedges death from “all other causes.

The diagram provided a compelling and immediately understandable illustration of a startling statistic: out of the 18,000 soldiers who had died, 16,000 had died of disease in hospital, rather than their wounds. Nightingale made extensive use of such diagrams in presenting reports on medical care throughout the war, and was able to persuade Queen Victoria and Members of Parliament to improve conditions in military hospitals.

Beutler Ink

Source : Florence Nightingale

Source : Florence Nightingale

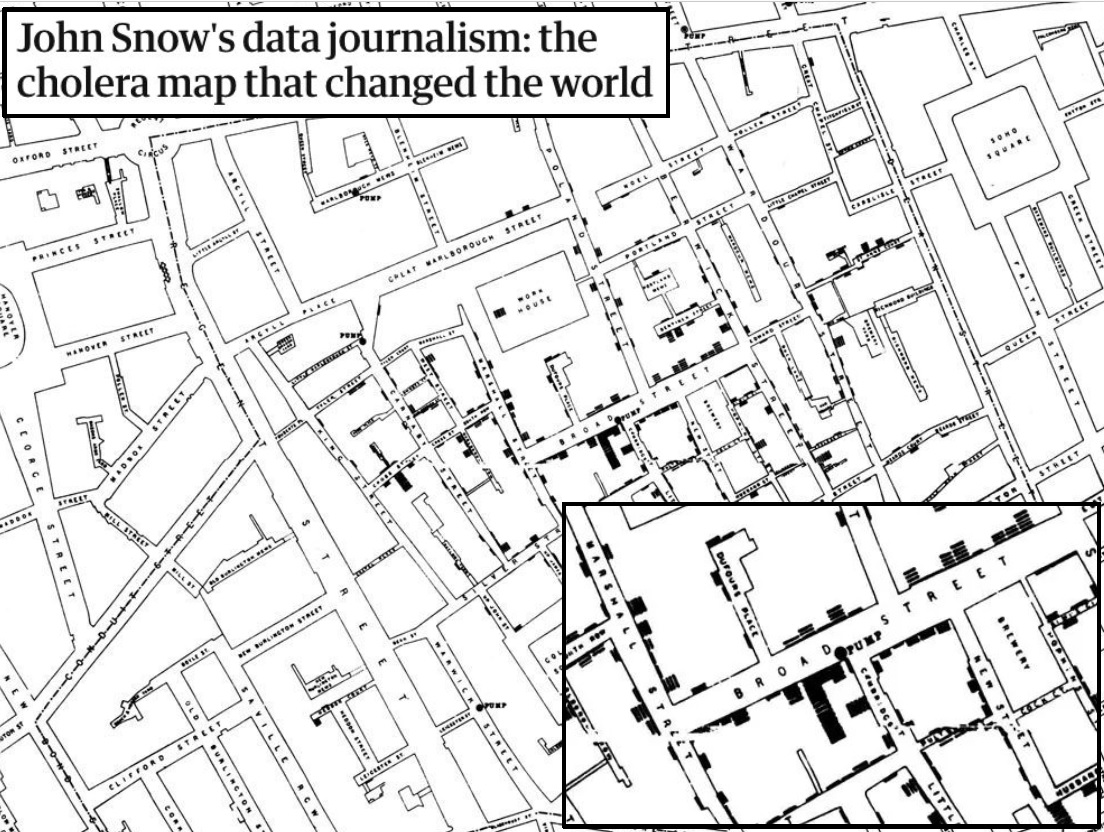

5.1.3 Example 2: A map tracing the source of a 1854 cholera outbreak in the Soho district of London

The prevailing belief at the time was that cholera and other diseases were transmitted by bad air. But by collecting the locations of cholera deaths, Snow was able to identify a clear concentration around the water pump on Broad Street. His research was persuasive enough to persuade the local city council to disable the well pump by removing its handle. This action has been commonly credited as ending the outbreak.

Snow used his map to convince local authorities to remove the handle of the Broad Street pump. Though the cholera epidemic was already on the wane when he did so, it is possible that the disabling of the pump prevented many deaths from future waves of the disease.

Adhikari ; John DeNero and David Wagner

John Snow

John Snow

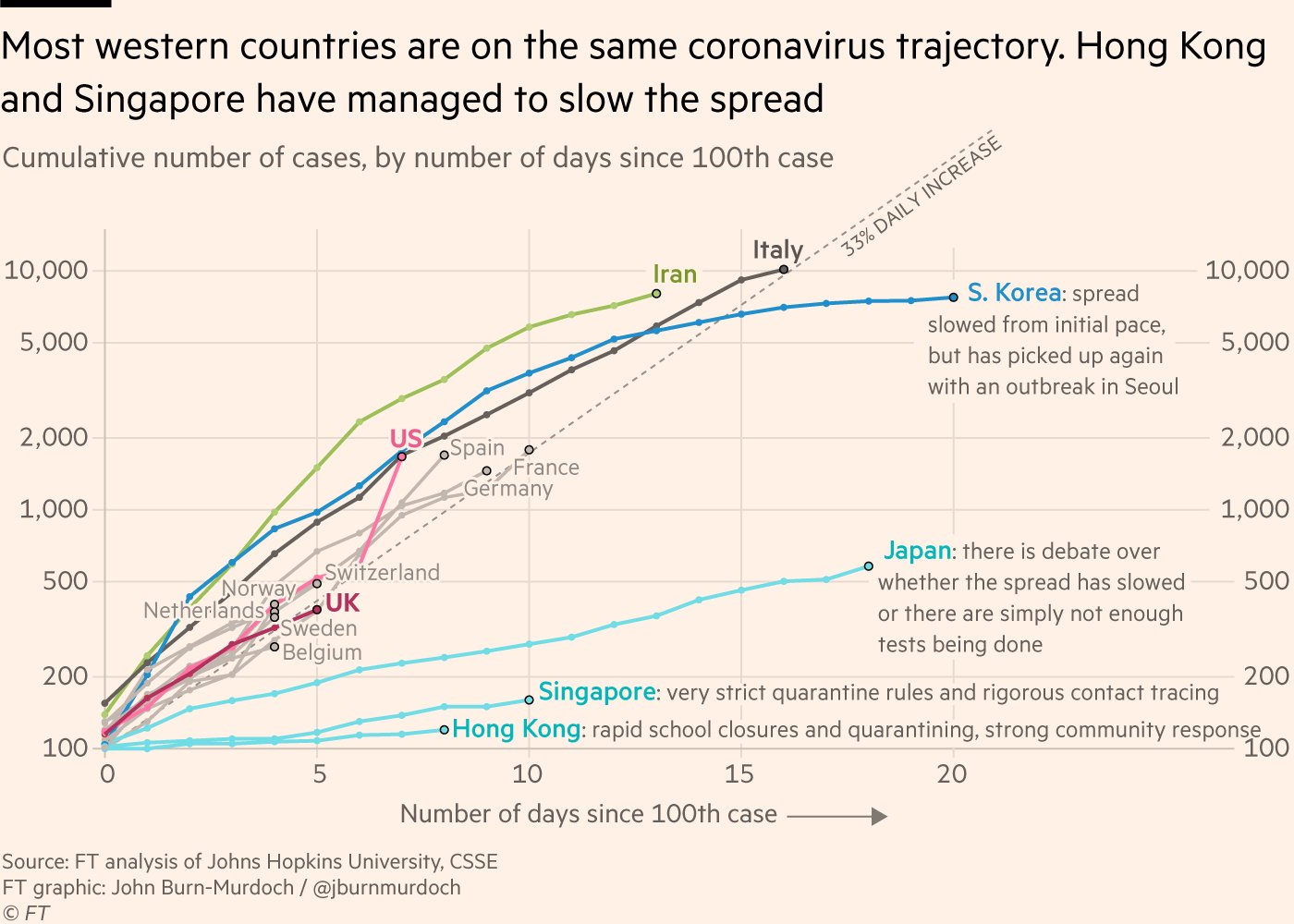

5.1.4 Example 3: A lineplot tracing the evolution of coronavirus spread in march 2020 in different coutries

Many western countries may soon face Italy’s situation

“Case numbers since outbreaks began in several countries have tracked a ~33% daily rise. This is as true for UK, France, Germany as Italy; the latter is simply further down the path.”

John Burn-Murdoch

Source: https://twitter.com/

Source: https://twitter.com/

You can lean more about it in this video.

5.2 How?

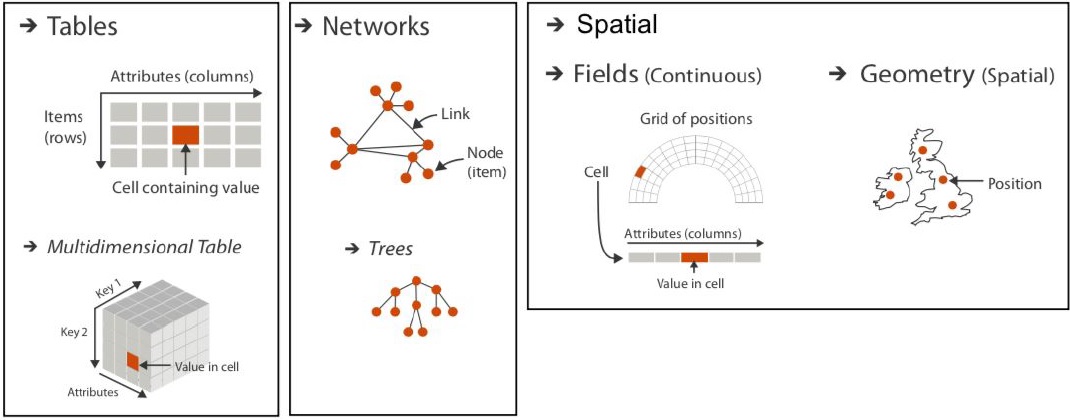

5.2.1 Three major datatypes

There are many data structures used in various fields. It includes database management, network analysis, and spatial data analysis:

  1. Tables: One of the most common and straightforward data structures. They consist of attributes (columns) and items (rows), where each cell contains a value. (relational databases, spreadsheet software…)

  2. Networks: They represent relationships between entities (social networks, transportation networks…). They consist of nodes (also called vertices) and links (also called edges) that connect these nodes. Trees are a specific type of network where each node has exactly one parent, except for the root node.

  3. Spatial: Spatial data refers to data associated with geographical locations. It involves representing objects with geometric shapes, such as points, lines, and polygons, in a spatial context.

Source: Tamara Munzer

Source: Tamara Munzer

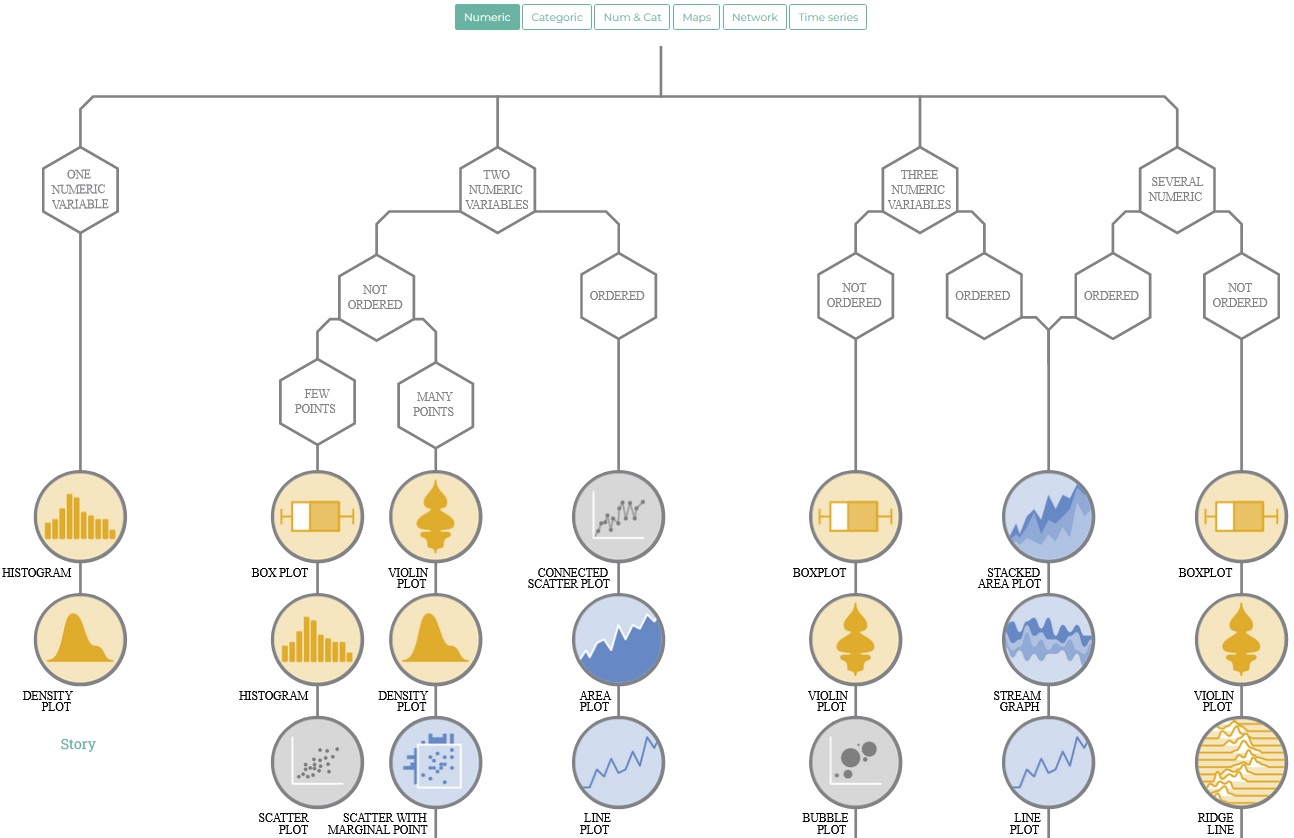

5.2.2 Find which plot you need

Source: https://www.data-to-viz.com/

Source: https://www.data-to-viz.com/

This decision tree guides users in selecting appropriate visualization methods based on their data characteristics. Each type leads to a set of visualization options.

5.2.3 Find example R code

The R Graph Gallery showcases a diverse collection of charts and visualizations created using the R programming language. The gallery features hundreds of charts organized into various sections, each accompanied by its reproducible code for users to study and adapt. The focus of the gallery is on leveraging the tidyverse and ggplot2 packages for creating aesthetically pleasing and informative graphs.

Source: https://r-graph-gallery.com/

Source: https://r-graph-gallery.com/

5.3 Recap

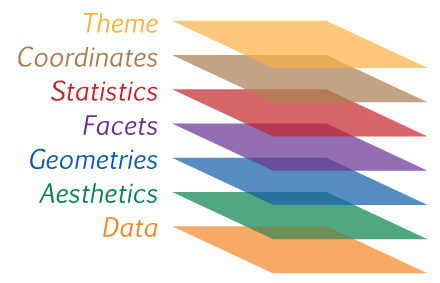

5.3.1 Your plots are layers

  • Data: The actual variables to be plotted.
  • Aesthetics: The scales onto which we will map our data.
  • Geometries: Shapes used to represent our data.
  • Facets: Rows and columns of sub-plots.
  • Statistics: Statistical models & summaries.
  • Coordinates: The plotting space we are using.
  • Theme: Describes non-data ink.

Source: https://www.science-craft.com

Source: https://www.science-craft.com

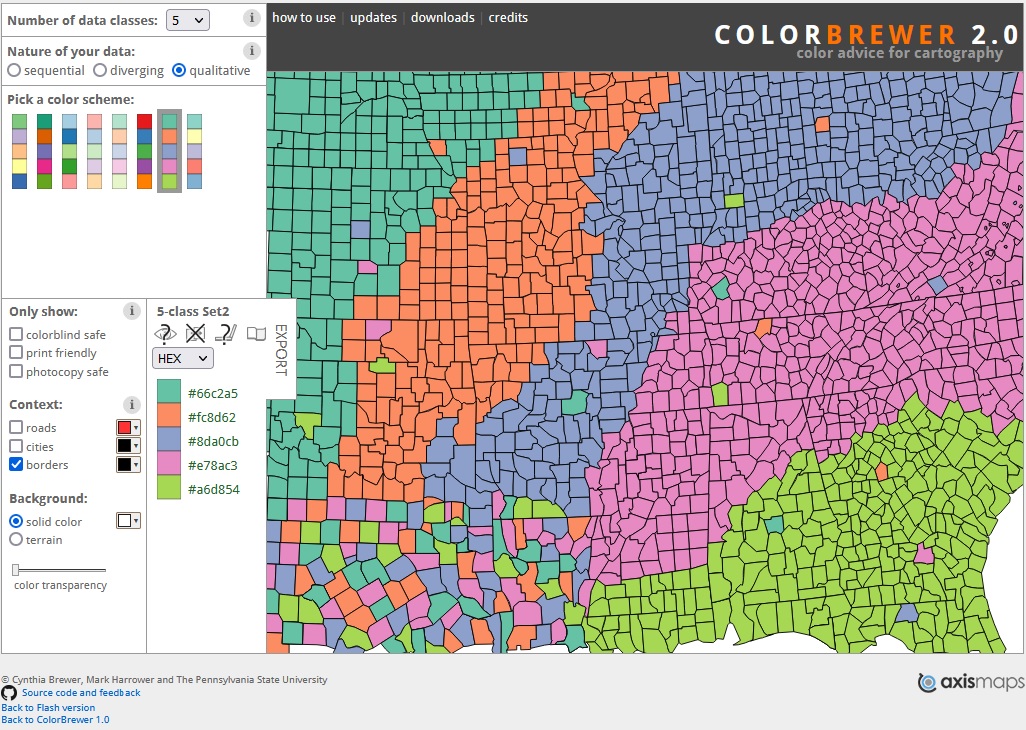

5.3.2 Youʼll also need colors

Source: https://colorbrewer2.org

Source: https://colorbrewer2.org

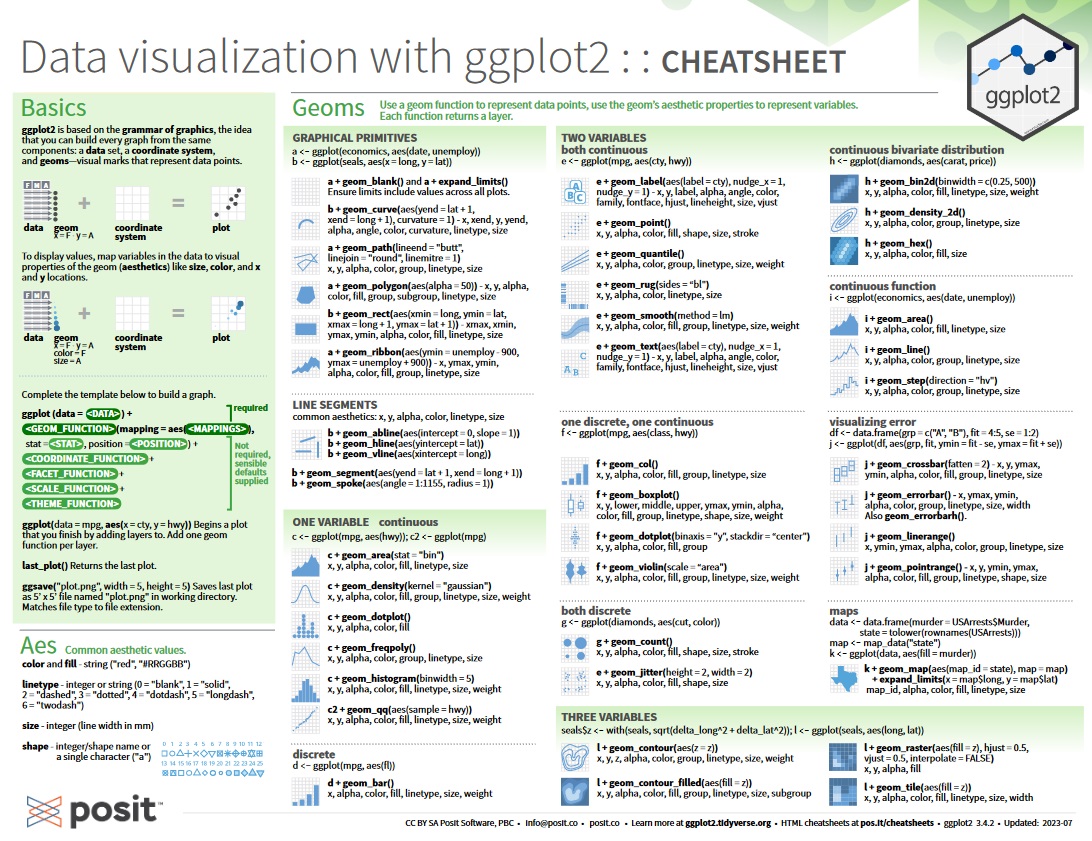

5.3.3 More Cheatsheets

Source : https://raw.githubusercontent.com/rstudio

Source : https://raw.githubusercontent.com/rstudio

5.4 Ressources

  1. Heiss, A. ; Data Visualization.

  2. Sanchez, G. ; Data Visualization: Intro to Data Visualization, Visual System, Color, Design Principles, Recommendations, Art & Entertainment.

  3. Tufte, E. R. ; The Visual Display of Quantitative Information. URL:

  4. Munzner, T. ; Visualization Analysis and Design.

  5. Healy, K. ; Data Visualization.

  6. Chang, W.; R Graphics Cookbook.

  7. Wilke, C. O. ; Fundamentals of Data Visualization.

  8. Rahlf, T. ; Data Visualisation with R — 111 Examples (using base R).

Homework for next week

  • Do again and finish Exercise 2

  • No preparation exercise

    • Work on your graded exam from last week
    • It must be sent before next class!
  • Handbooks, videos, cheatsheets

    • 2 chapters of Irizarry’s handbook
    • 1 chapters of Healy’s handbook
    • 2 chapters of Grolemund and Wickham’s handbook
    • 1 Cheatsheet about dataviz
